Caractéristiques

Model Number: QS

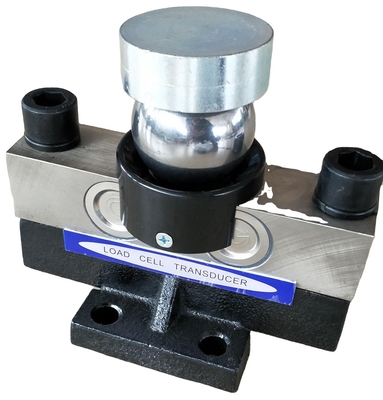

Product name: Load Cell

Type of Product: QS/SQB

Output Sensitivity: MV/v; 2.0Â±01%,3.0Â±0.1%

Non-lincaruty error: Â±0.02%F.S

Hysteresis error: Â±0.02%F.S

Repeatability error: Â±0.02%F.S

Creep(30min): Â±0.02%F.S

Zero output: Â±1%F.S

Zero Temperature effet: Â±0.002%F.S/K

Rated output temperature effect: Â±0.002%F.S/K

Informations de base

Model Number: QS

Conditions de paiement et expédition

Packaging Details: 16 PCS/CTN CTN Size: 41*21*26CM G.W./N.W.:16.5 / 15.5 Kg

Description de produit

Product Description

FEATURES:

Application	Truck Scales,Railway Scales, Blending Scales , Special scales
Rated Load	5, 10,15,20,25,30, 40T
Sensitivity	2.0±0.002mV/V
Accuracy Class	C1-C5
Creep(30min)	±0.02%F.S
Zero balance	±1%F.S
TCO	±0.02%F.S/10
TC SPAN	±0.02%F.S/10
Input resistance	750±10Ω
Output resistance	702±3Ω, 703±5Ω(L≥15M),
Recommend excitation	10∼12V DC
Maximum excitation	15V DC
nsulation resistance	≥5000MΩ
Protection Class	IP67(5T)/IP68(10-40T)
Temperature Range. Compensated:	-10∼+40
Operating Temp Range	-30∼+70
Safe load limit	150%F.S, 120%F.S ( 40-50T)
Construction	Alloy Steel-S/-SS;Stainless steel
Over load limit	300%F.S. 200%F.S ( 40-50T)
Cable	Length;5.2m(5t),10m(15t) ,10/12m(20t)
	12/15m(25t), 12/16m(30t), 16m(40t) Diameter:6mm
